Laboratory
VERTICAL AUTOCLAVE
FVG / FVA /A1 SERIES
| Technical Features | FVG SERIES | FVA / A1 SERIES | ||||
|---|---|---|---|---|---|---|
| 50 L | 75 L | 140 L | 75 L | 140 L | 188 L | |
| Applications | QC | ANALYSIS | BIO PHARMA | COSMETICS | MICROBIOLOGY PACKAGING | FOOD | QC | ||||
| SW Options | CONNECTION TO EXTERNAL PC | HEATING AND TEMPERATURE MAINTENANCE | CFR 21 PART 11 | ACTIVE DIRECTORY | SCADA | ||||
| Process Controller | MULTI-LEVEL PASSWORD PROTECTION (UNDER CONTROLLER) | 14 FREELY CONFIGURABLE PROGRAMS (UNDER CONTROLLER) | COMPLIANT WITH GAMP5 | ||||
Laboratory

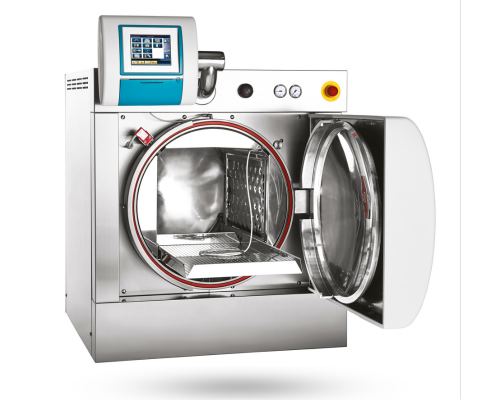

BENCHTOP HORIZONTAL AUTOCLAVE
FOB2 - FOB3 SERIES
| FOB2 - FOB3 SERIES | ||||
|---|---|---|---|---|
| Available Capacities | 47 L | 75 L | 90 L | 122 L |
| Door Configuration | SINGLE OR DOUBLE DOOR | |||
| Applications | BIO - PHARMA | COSMETICS | MICROBIOLOGY PACKAGING | FOOD | QC | BSL3 | BSL4 | |||
| SW Options | CFR 21 PART 11 | ACTIVE DIRECTORY | SCADA | |||
| Process Controller | COMPLIANT WITH GAMP5 | |||
Laboratory
STAND - ALONE HORIZONTAL AUTOCLAVE / STEAM STERILISER
| FOB4 SERIES | FOB5 SERIES | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Available Capacities | 147 L | 210 L | 325 L | 456 L | 481 L | 615 L | 590 L | 700 L | 730 L | |
| Door Configuration | SINGLE OR DOUBLE DOOR | SINGLE OR DOUBLE DOOR | ||||||||
| Applications | BIO - PHARMA | COSMETICS | MICROBIOLOGY PACKAGING | BSL3 | BSL4 | BIO - PHARMA | COSMETICS | MICROBIOLOGY PACKAGING | BSL3 | BSL4 | ||||||||
| SW Options | CFR 21 PART 11 | ACTIVE DIRECTORY | SCADA | CFR 21 PART 11 | ACTIVE DIRECTORY | SCADA | ||||||||
| Process Controller | COMPLIANT WITH GAMP5 | COMPLIANT WITH GAMP5 | ||||||||
Laboratory

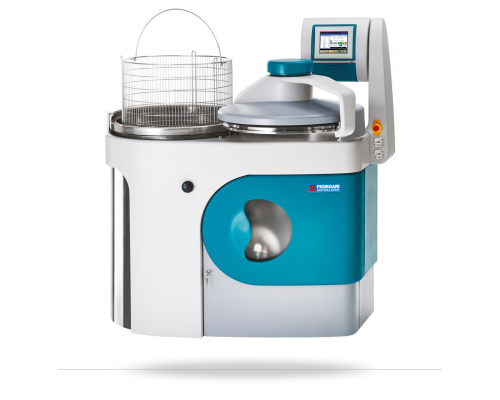

THE SMART AUTOCLAVE
THE SMART AUTOCLAVE
- DSC 20 plus process controller engineered and pre-validated by Fedegari according to GAMP5
- Hermetically sealed injectable drug product vials, pre-filled syringe, infusion bags and ampoules filled with injectable products without damage
- F0 Calculation & Control
- Pharmacopoeia Cycle (Arsenic, Glass resistant test, Stoppers)
- Single or double vertical automatic sliding doors display on loading and unloading sides
- Vertical positioning of filters avoiding frequent rupture
- Exclusive lid - Sealing system with pneumatic gasket
- Chamber internal surface is electropolished and complies with rigorous pharmaceutical standards, with a roughness Ra<0.4μm
- Counter Pressure Cycle
Evoqua
TYPE I GRADE WATER SYSTEMS
TYPE I GRADE WATER SYSTEMS
| Specifications | Labostar Pro DI2 | Labostar Pro DI4 | Labostar Pro UV2 | Labostar Pro UV4 | Ultra Clear TP UV TM |
|---|---|---|---|---|---|
| Feedwater | RO / DM Water / Purified Water / Type II Water | 2 LPM (80 – 100 liters / day) | |||
| Flow Rate | 1.5 LPM (40 - 50 Liters per day) | ||||
| Conductivity | 0.055 μS/cm | ||||
| Resistivity | 18.2 MΩ-cm | ||||
| TOC Monitoring | Not Available | Available | |||
| Tank Capacity | Available as option* | Inbuilt 7 L Tank | Available as option* | Inbuilt 7 L Tank | Available as option* |
| Dispenser | Normal Dispenser | Electronic Dispenser | |||
| TOC | 5-10 ppb | 5-10 ppb | 1-5 ppb | 1-5 ppb | < 1 - 3 ppb |
| Bacteria | <0.1 cfu/ml** | ||||
| Endotoxins | <0.001 EU/ml (with the help of Sterile filter with endotoxin retention) | <0.001 EU/ml (with the help of UF Filter, as an optional) | |||
| Particles | < 1 | ||||
Note: * tank option 30lit, 60lit and 100lit
Note: ** typical 0.001cfu/ml(1/1000cfu/ml)
Evoqua

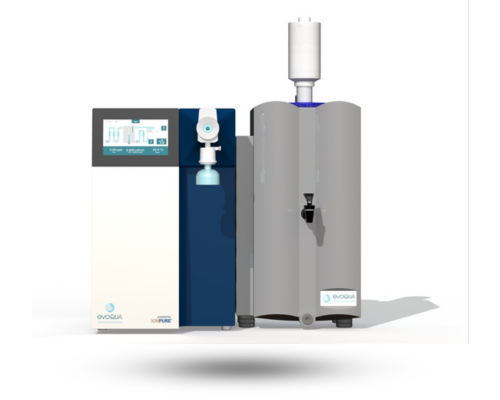

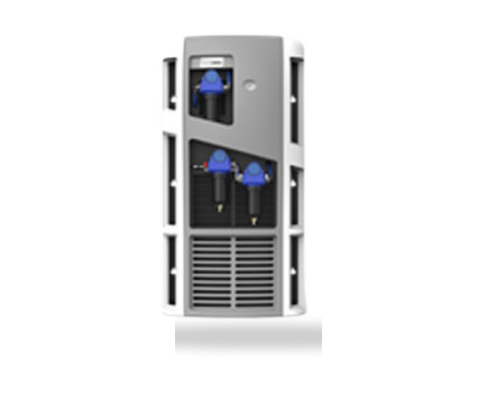

TYPE III/II/I GRADE WATER SYSTEMS (Intergated systems)
TYPE III/II/I GRADE WATER SYSTEMS (Intergated systems)
| Specifications | Labostar Pro TWF UV | Ultra Clear TP DI TWF UV UF | Ultra Clear TP EDI TWF UV UF |
|---|---|---|---|
| Feedwater | Tap Water Feed / Potable Water | ||
| Water Grade | Type III / II / I | Type II/I | Type II/I |
| Display | LCD DISPLAY | TOUCH SCREEN | |
| Type III / Type II Pure Water Specifications | |||
| Flowrate | 10 / 20 LPH | 10 / 20 LPH | 10 / 20 LPH |
| Conductivity | 0.1 μS/cm | up to 2 μS/cm | 0.06 to 0.2 μS/cm |
| Resistivity | 10 MΩ-cm | 1 - 10 MΩ-cm | 10 - 15 MΩ-cm |
| TOC | 30 ppb | <50 ppb | <30 ppb |
| Type II Water Technology | DI Technology | DI Technology | EDI Technology |
| Tank Capacity | Inbuilt 7 L Tank, Option such as 30/60 are available | 30 / 60 / 120 can be of your choice | 30 / 60 / 120 can be of your choice |
| Type I Ultrapure Water Specifications | |||
| Flow Rate | 1.5 LPM | 2 LPM | 2 LPM |
| Conductivity | 0.055 μS/cm | ||
| Resistivity | 18.2 MΩ-cm | ||
| TOC Monitoring | Not Available | Available | |
| Dispenser | Normal Dispenser | Electronic Dispenser | |
| TOC | 1-5 ppb | < 1 - 3 ppb | 1-5 ppb |
| Bacteria | <0.1 cfu/ml | ||
| Endotoxins | <0.001 EU/ml (with the help of Sterile filter with endotoxin retention) | <0.001 EU/ml (with the help of UF Filter, as an optional) | <0.001 EU/ml (with the help of UF Filter, as an optional) |
| Particles | < 1 μm/ml | ||
Evoqua
LAB SCALE : TYPE II GRADE WATER SYSTEMS
TYPE II GRADE WATER SYSTEMS
| Specifications | Labostar Pro TWF UV | Ultra Clear TP DI TWF UV UF | Ultra Clear TP EDI TWF UV UF |
|---|---|---|---|
| Feedwater | Tap Water Feed / Potable Water | ||
| Water Grade | Type III / II / I | Type II/I | Type II/I |
| Display | LCD DISPLAY | TOUCH SCREEN | |
| Type III / Type II Pure Water Specifications | |||
| Flowrate | 10 / 20 LPH | 10 / 20 LPH | 10 / 20 LPH |
| Conductivity | 0.1 μS/cm | up to 2 μS/cm | 0.06 to 0.2 μS/cm |
| Resistivity | 10 MΩ-cm | 1 - 10 MΩ-cm | 10 - 15 MΩ-cm |
| TOC | 30 ppb | <50 ppb | <30 ppb |
| Type II Water Technology | DI Technology | DI Technology | EDI Technology |
| Tank Capacity | Inbuilt 7 L Tank, Option such as 30/60 are available | 30 / 60 / 120 can be of your choice | 30 / 60 / 120 can be of your choice |
| Type I Ultrapure Water Specifications | |||
| Flow Rate | 1.5 LPM | 2 LPM | 2 LPM |
| Conductivity | 0.055 μS/cm | ||
| Resistivity | 18.2 MΩ-cm | ||
| TOC Monitoring | Not Available | Available | |
| Dispenser | Normal Dispenser | Electronic Dispenser | |
| TOC | 1-5 ppb | < 1 - 3 ppb | 1-5 ppb |
| Bacteria | <0.1 cfu/ml | ||
| Endotoxins | <0.001 EU/ml (with the help of Sterile filter with endotoxin retention) | <0.001 EU/ml (with the help of UF Filter, as an optional) | <0.001 EU/ml (with the help of UF Filter, as an optional) |
| Particles | < 1 μm/ml | ||
Evoqua
HIGH FLOWRATE : TYPE II WATER SYSTEMS
TYPE II GRADE WATER SYSTEMS
| Specifications | Labostar Pro RO DI | Ultra Clear RO DI | Ultra Clear RO EDI |
|---|---|---|---|
| Water Grade | Type II | Type II | Type II |
| Flowrate | 10 / 20 LPH | 20 / 30 LPH | 10 / 20 / 30 LPH |
| Conductivity | < 0.1 μS/cm | < 0.1 μS/cm | < 0.2 μS/cm |
| Resistivity | 10 MΩ-cm | 10 MΩ-cm | 10-15 MΩ-cm |
| TOC | 30-50 PPB* | 30-50 PPB* | 30 PPB* |
| Type II Water Technology | DI Technology | DI Technology | EDI Technology |
| Tank Capacity | Inbuilt 7 L Tank, Option such as 30/60 are available | 30 / 60 / 120 can be of your choice | 30 / 60 / 120 can be of your choice |
NOTE :- * WITH OPTIONAL IN LINE UV LAMP
SMEG Instruments
LABORATORY GLASSWARE WASHER WITH DRYING SYSTEM

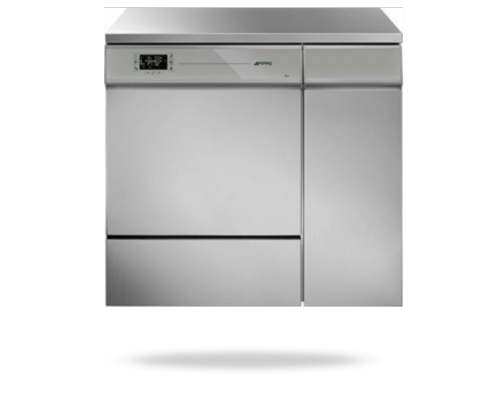

GW 4290 series
- Washing up to 95°C - antibacterical thermal disinfection
- Programs: 20 default + 10 custom + 1 Service
- microprocessor electronic control provided with 3 safety levels for parameters editing and adjusting
- Forced hot air drying system with air filter
- provided with software to connect the device and monitoring cycles and parameters
- electronic door lock system for user safety
- cold water and demineralized water connections as default configuration
GW5290-SC
- Washing up to 95°C - antibacterical thermal disinfection
- Programs: 20 default + 10 custom + 1 Service
- microprocessor electronic control provided with 3 safety levels for parameters editing and adjusting
- Forced hot air drying system with air filter
- provided with software to connect the device and monitoring cycles and parameters
- electronic door lock system for user safety
- cold water and demineralized water connections as default configuration
- Quality washing conductivity sensor, as optional
- Inbuilt Steam Condenser
HIGH CAPACITY SINGLE GLASS DOOR LABORATORY GLASSWARE WASHER

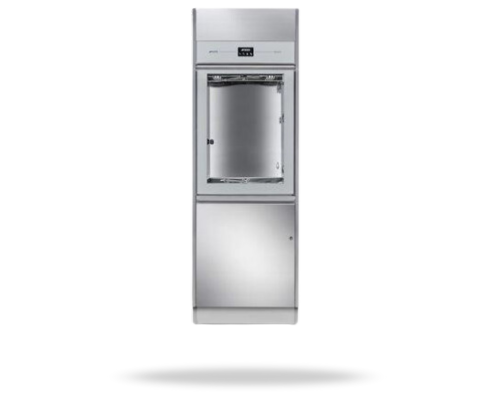

GW6010ML
- washing up to 95°C - antibacterial thermal disinfection
- capacity up to 5 adjustable levels
- programs: 20 default + 20 custom
- multi-language TFT colour touch screen
- functioning protected by different levels password
- electronic door lock system for user safety
- USB port for downloading washing cycles log
- Ethernet port for LAN connection (optional)
- Electronic door lock system for user safety
- high pressure hot air drying system
- high efficiency Ecoslim steam condenser (optional)
- peristaltic pump for liquid detergent
- peristaltic pump for liquid neutralizer

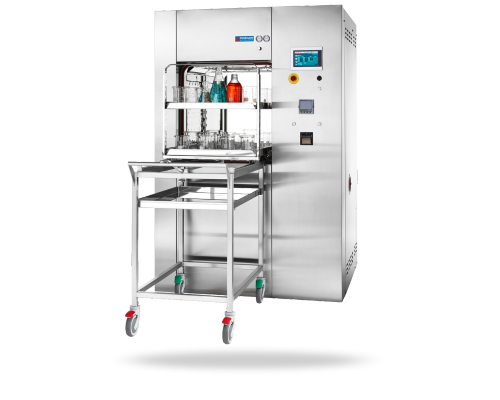

GW6290DS
- Washing up to 95°C - antibacterical thermal disinfection
- Programs: 20 default + 20 custom
- Multi-language TFT colour touch screen
- SB port for downloading washing cycles log
- n. 2 motors forced hot air drying system
- Peristaltic pump for liquid detergent
- peristaltic pump for liquid neutralizer
- Washing up to 3 levels
- External dimensions LxDxH: 900 x 800 x 1950 mm
- n. 2 independent washing pumps
- high efficiency drain pump
- Built-in boiler for fast cycles preheating water
- Double electronic door lock system for user safety
SMEG Instruments

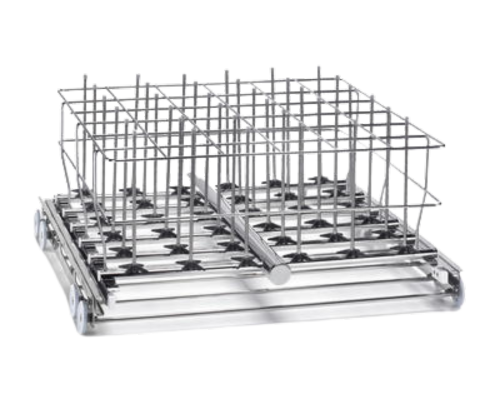

Trolleys
Trolleys / Accessories For small capacity glassware washer

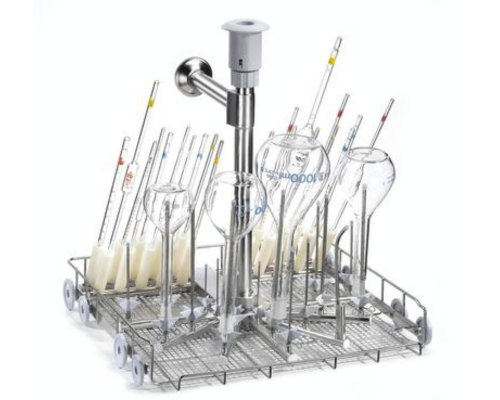

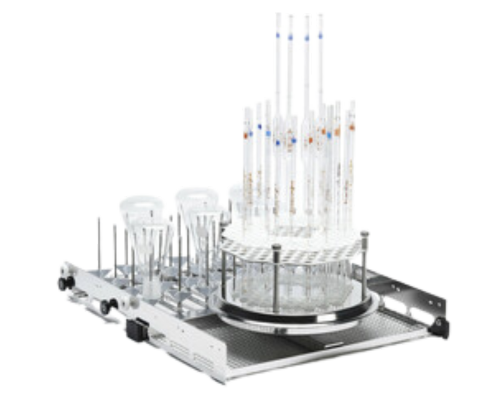

LPM20/20DS – Mixed Washing Trolley Flasks / Pipettes

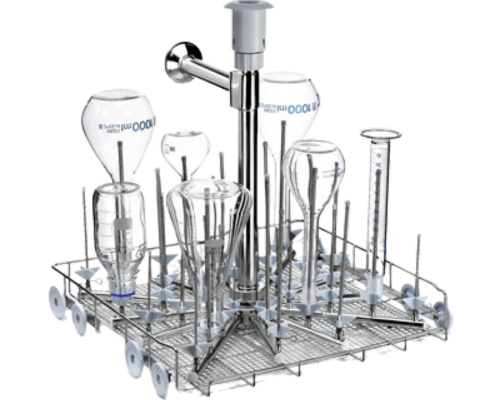

LM40 /80 DS –Single /Two level washing - Flasks

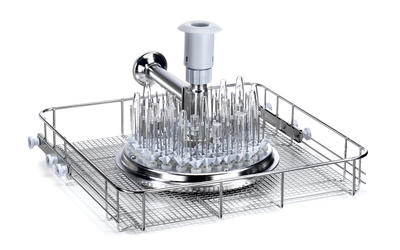

KP100 /200DS – Single / Two Level injection trolley for Test Tubes
PB1000 support for 1000ml wide Neck bottles

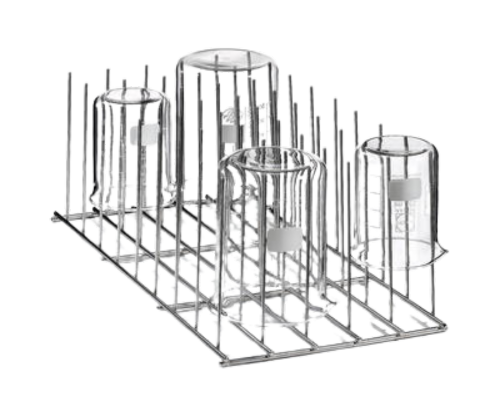

SB30 Beakers Support

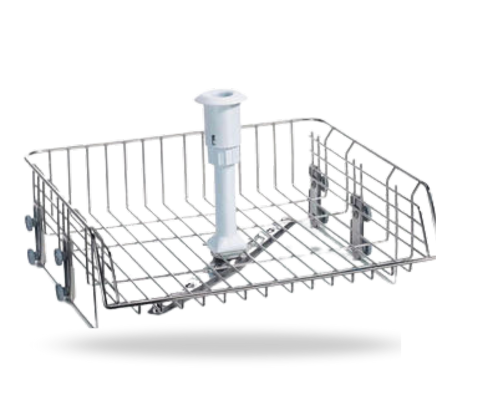

CS1-1 upper Trolley spayer
CS2 Lower Trolley
Trolleys / Accessories For High capacity glassware washer
L680/L685/L690 universal Injection Trolley
INSLP28U40R Mixed Injecction Trolley

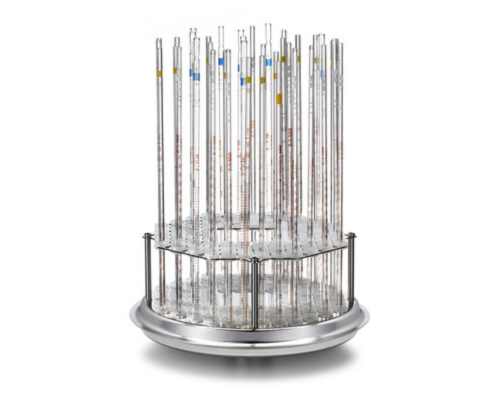

LP6 Pipette Adaptor for Multi Nozzle System

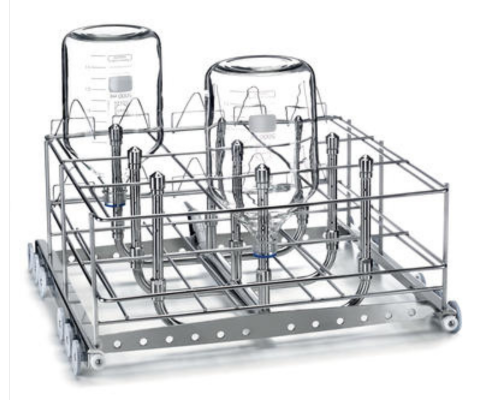

C65-1 Lower Injection Trolley For Larger bottles
C636-1 Lower Injection Trolley For Narrow Neck Bottles
Ilshin
Laboratory Scale Series

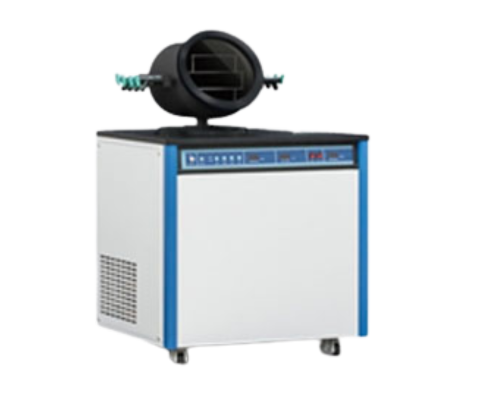

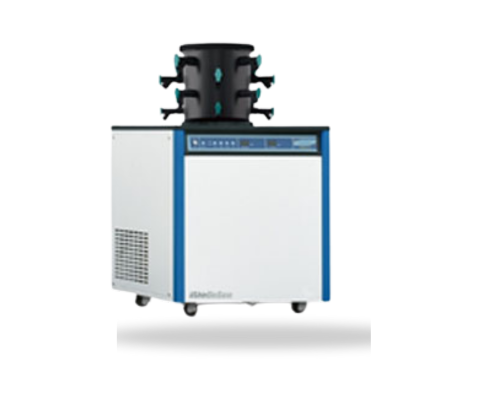

Freeze Dryer (FD Series)
| Technical Features | Models | |||
|---|---|---|---|---|
| FD 8508 | FD 8512 | FD 8518 | FD 12008 | |
| Ice capacity | 5 liters | 10 liters | 12 liters | 5 liters |
| Totally ice capacity | 8 liters | 12 liters | 18 liters | 8 liters |
| Condenser temperature | -70 to -85°C | -70 to -85°C | -70 to -85°C | -100 to -120°C |
| Refrigeration | 1 1/4 HP | 1 1/4 HP | 1 1/4 HP | 2 x 1 1/2 HP |
Ilshin
Laboratory Scale Series

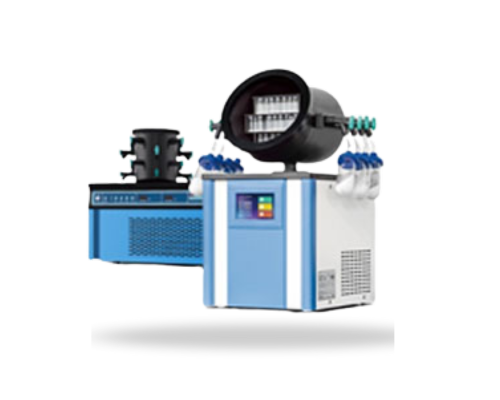

Table Top Freeze Dryer (TFD Series)
| Technical Features | Models | |||
|---|---|---|---|---|
| TFD 8501 | TFD 8503 | |||
| Ice capacity | 1 liter | 2 liters | ||
| Totally ice capacity | 2 liters | 3 liters | ||
| Condenser temperature | -70 to -85°C | |||
| Refrigeration | 3/8 HP | |||
Ilshin
Laboratory Scale Series

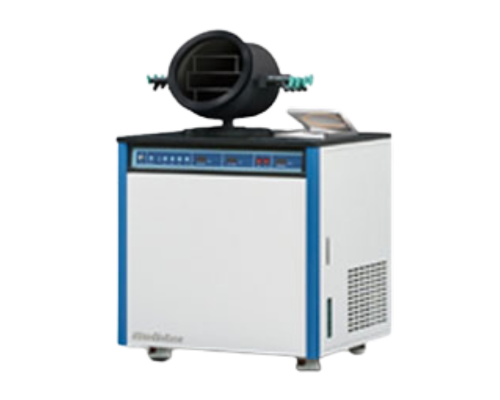

Freeze Dryer with Shell Freezer (FDS Series)
| Technical Features | Models | |||
|---|---|---|---|---|
| FDS 8508 | FDS 8512 | FDS 8518 | ||
| Ice capacity | 5 liters | 10 liters | 12 liters | |
| Totally ice capacity | 8 liters | 12 liters | 18 liters | |
| Condenser temperature | -70 to -85°C / Shell Freezer: -40°C | |||
| Refrigeration | 1 1/4 HP + 3/8 HP | |||
Ilshin
Laboratory Scale Series
Freeze Dryer with Micro Concentrator
| Technical Features | Models | |||
|---|---|---|---|---|
| FDS 8508 | FDS 8512 | FDS 8518 | ||
| Ice capacity | 5 liters | 10 liters | 12 liters | |
| Totally ice capacity | 8 liters | 12 liters | 18 liters | |
| Condenser temperature | -70 to -85°C / Shell Freezer: -40°C | |||
| Refrigeration | 1 1/4 HP + 3/8 HP | |||
Ilshin

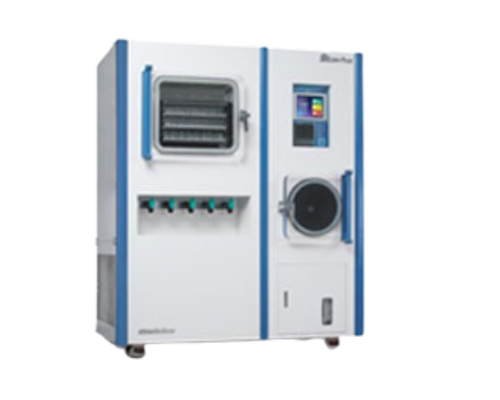

Pilot Scale Series
Pilot Scale Series 1
| Technical Features | Models | |||
|---|---|---|---|---|
| LP 10 | LP 20 | LP 30 | ||
| Ice capacity | 8 liters | 16 liters | 24 liters | |
| Totally ice capacity | 10 liters | 20 liters | 30 liters | |
| Condenser temperature | -50 to -85°C (-120°C) | |||
| Shelf temperature | -45 to +80°C | |||
| Refrigeration | 2 HP x 2EA | 3 HP x 2EA | 5 HP x 2EA | |
Ilshin
Pilot Scale Series

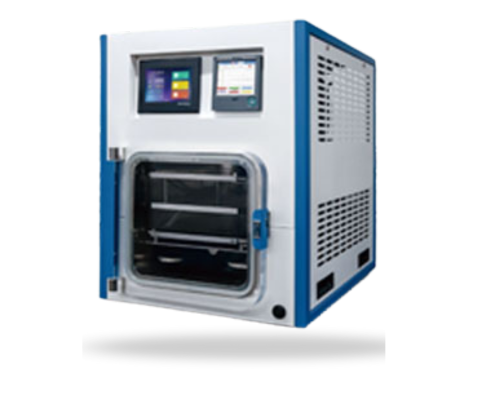

Pilot Scale Series 2
| Technical Features | Model: LP 03 | |||
|---|---|---|---|---|
| Ice capacity | 4 liters | |||
| Control range | -38 ~ to +60°C | |||
| Condenser | -70°C | |||
| Shelf area | 2+1, 0.19m² (EA) | |||
| Defrost | Hotgas control | |||

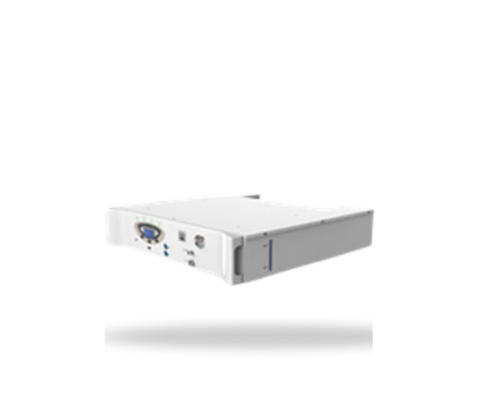

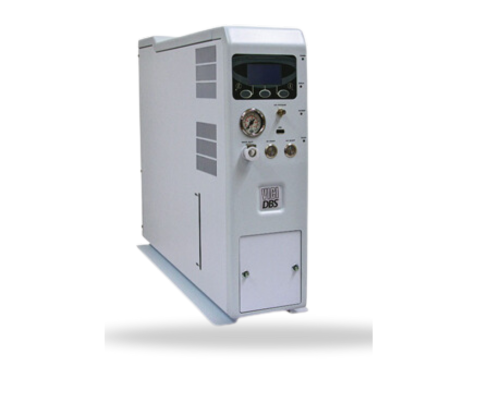

VICI DBS - Laboratory Gas Generator
Gas Chromatography

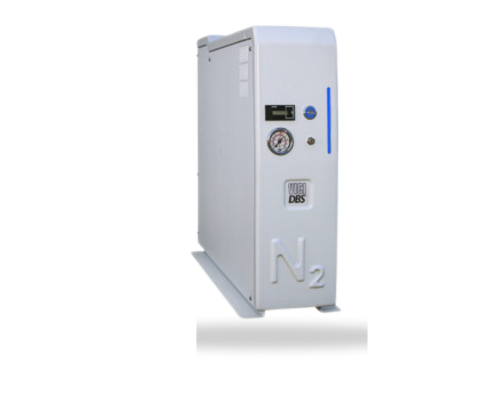

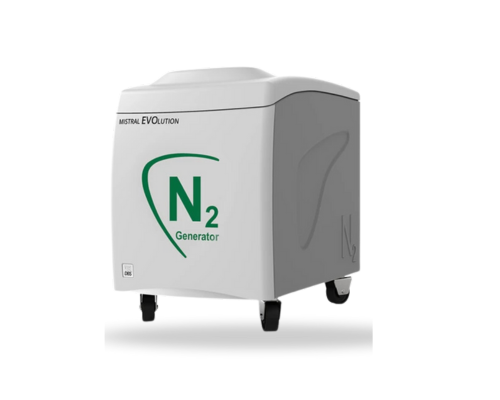

(i) Nitrogen Generator
| Technical Features | Models | ||||
|---|---|---|---|---|---|
| HP 500 | HP 750 | HP 1000 | HP 2000 | HP 4000 | |
| Flow (mL/min): | 500 | 750 | 1000 | 2000 | 4000 |
| Purity: | >99.999% | ||||
| Outlet Pressure: | up to 5 max (75) | ||||
| Technology: | Carbon Molecular Sieve | ||||
| Technical Features | Models | |||||
|---|---|---|---|---|---|---|
| HP ZERO 200 HC | HP ZERO 500 HC | HP ZERO 750 HC | HP ZERO 1000 HC | HP ZERO 2000 HC | HP ZERO 4000 HC | |
| Flow mL/min | 200 | 500 | 750 | 1000 | 2000 | 4000 |
| Purity | >99.999% | |||||
| Outlet pressure | up to 5 max (75) | |||||
| Technology | Carbon Molecular Sieve | |||||
(ii) Hydrogen Generator
| Technical Features | Models | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| NM PLUS 100 | NM PLUS 160 | NM PLUS 250 | NM PLUS 300 | NM PLUS 400 | NM PLUS 500 | NM PLUS 600 | NM PLUS 1000 | NM PLUS 1350 | |
| Flow Rate mL/min | 100 | 160 | 250 | 300 | 400 | 500 | 600 | 1000 | 1350 |
| Purity | >99.99996% | ||||||||
| Outlet pressure | 1.4 to 11 (20 to 160) | ||||||||
| Technology | PEM (Proton Exchange Membrane) - 100% Titanium cell | ||||||||
| Technical Features | Models | ||
|---|---|---|---|
| PG PLUS 100 | PG PLUS 160 | PGPLUS3 / GPLUS600600 / PGNUS / PGPLUS / 이 |
|
| Flow mL/min | 100 | 160 | 250 / 0 / 3 / 0 / 50 / 0 |
| Purity | >99.9996% | ||
| Outlet pressure | 0.5 to 11 (7 to 160) | ||
| Technology | PEM (Proton Exchange Membrane) - 100% Titanium cell | ||
(iii) Zero Air Generator
| Technical Features | Models | |||||
|---|---|---|---|---|---|---|
| GC PLUS 1500 | GC PLUS 3000 | GC PLUS 6000 | GC PLUS 15000 | GC PLUS 30000 | ||
| Flow Rate: | 1500 mL/min | 3000 mL/min | 6000 mL/min | 15000 mL/min | 30000 mL/min | |
| Purity: | <0.1 ppm | |||||
| Inlet Pressure: | 4.5 to 10 barg (65 to 145 psig) | |||||
| Technology: | Platinum Catalyst | |||||
(iv) Hydrogen + Zero Air Generator Combination (FID Station)
| Technical Features | Models | ||||
|---|---|---|---|---|---|
| NM PLUS 100 FID STATION |
NM PLUS 300 FID STATION |
NM PLUS 600 |
NM PLUS 1000 FID STATION |
NM PLUS 1350 FID STATION |
|
| Flow mL/min | 100 | 300 | 600 | 1000 | 400 |
| Purity | >99.99996% | ||||
| Outlet pressure | 1.4 to 11 (20 to 160) | ||||
| Technology | PEM (Proton Exchange Membrane) - 100% Titanium cell | ||||
| Technical Features | Models | |
|---|---|---|
| PG PLUS 100 FID STATION |
PG PLUS 250 FID STATION |
|
| Flow mL/min | 100 | 250 |
| Purity | >99.99996% | |
| Outlet pressure | 0.5 to 11 (7 to 160) | |
| Technology | PEM (Proton Exchange Membrane) - 100% Titanium cell | |
Liquid Chromatography Mass Spectrometry
(i) High Flow Rate Nitrogen Generator With Compressor
(i) High Flow Rate Nitrogen Generator With Compressor
| Technical Features | Models | |||
|---|---|---|---|---|
| MISTRAL EVOLUTION N 10 |
MISTRAL EVOLUTION N 25 |
MISTRAL EVOLUTION N 35 |
MISTRAL EVOLUTION N 40 |
|
| Flow mL/min | 10 | 25 | 35 | 40 |
| Purity | >99.5% | 99% | 98% | 97% |
| Outlet pressure | 3(45) | 8(116) | ||
| Technology | Carbon Molecular Sieve | |||
(ii) High Flow Rate Nitrogen Generator Without Compressor
| Technical Features | Models | |||
|---|---|---|---|---|
| MINI WHISPER |
WHISPER - 0 40 |
WHISPER - 0 80 |
WHISPER - 0 120 |
|
| Flow mL/min | 10 | 25 | 35 | 40 |
| Purity | >99.5% | 99% | 98% | 97% |
| Outlet pressure | 7(100) | |||
| Technology | Membrane | |||
Life-Science Categories
Dynamica Scientific Ltd

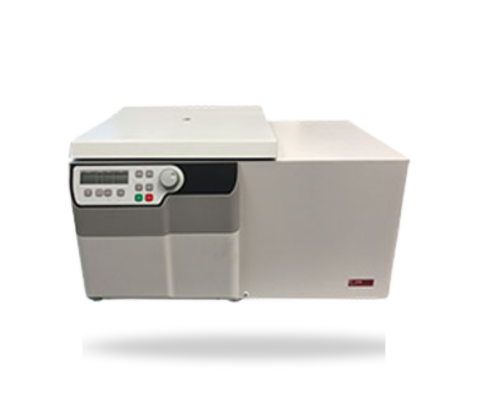

Model : Velocity 30R
Maximum Speed :
- 30,000 RPM
Maximum RCF:
- 65,395 x g
Max. Nominal Capacity:
- 1.5L
Speed Control Range:
- 200rpm to 30,000rpm , 10 rpm increment
Dimensions:
- 715 x 510 x 420 mm

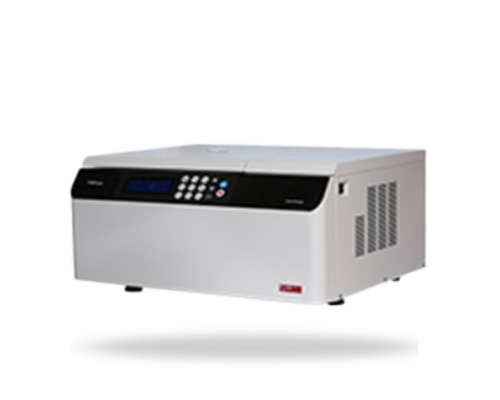

Model : Velocity 18R Pro
Maximum Speed :
- 18,000 RPM
Maximum RCF:
- 28,980 x g
Max. Nominal Capacity:
- 1,000 mL (4 x 250ml)
Speed Control Range:
- 300 rpm to 18,000 rpm (10 rpm increments)
Dimensions:
- 630 x 610 x 380 mm (LxWxH)

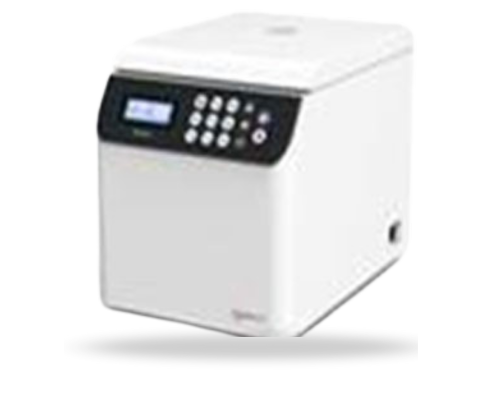

Model : Velocity 14 Pro
Model : Velocity 14R Pro
Maximum Speed :
- 14,000 RPM
Maximum RCF:
- 6x50 ml
Temperature
- -20℃~40℃
Dimensions:
- 560x500x380 mm
Consumables

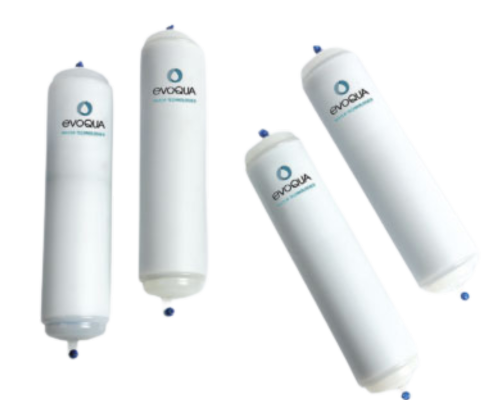

Evoqua (Formerly Siemens)
Water Purification System :
- Features :
- Only new, specially selected and certified materials are used for the treatment steps in our ultrapure water systems.
- High quality, virgin electronic grade ion exchange resins are used in cartridges and systems. Resins and treatment media go through a rigorous R&D stage before approval for use to ensure high quality and zero leachable material that could interfere with water quality. Upon delivery, each resin must pass incoming quality control inspection tests. Materials are strictly stored and handled according to our standard operating procedure to prevent contamination.
- Carefully selected activated carbon is used in the systems to produce pure water with extremely low organic contaminants. However, different types are available depending on the required water quality or application.
- All activated carbon materials undergo a complete cleaning process prior application to remove particles and impurities. This involves an acid wash followed by rinsing the carbon with ultrapure water.. All wetter parts within the systems are specially selected and tested to ensure purity. Tests are performed to determine there are no extractable metals or TOC released from the water contact parts.
- The purification modules are accurately designed to ensure complete wetting of the activated carbon to remove entrained air and purge the systems.
- Mixed bed resin modules must have the correct moisture content and fill level to ensure quality & operating capacity. Rapid filling of the modules is essential to prevent excess air contact and avoid the uptake of carbon dioxide.
- An environment free of organic contaminants during the cartridge filling process plays a vital role in producing ultrapure water. Modules are sealed with airtight end caps to prevent drying and are shrink-wrapped to prevent contamination.
- Modules should be stored in a cool, dry location (< 20 °C) away from light.
INERT
We design and deliver the most dependable standardized and custom-built inert atmosphere Glove Boxes, Gas Management Systems and Solvent Purification Systems at the most competitive prices.
- We are here to ensure your working environment is free of oxygen and moisture; and full safety, cost savings, and customized solutions to unique workflow requirements.
- Since 1981, we’ve been the glove box and solvent system design/manufacturer who puts quality, flexibility, and customer service first. As a result, our solutions and after-sales support are unmatched.
Glove Box System
PureLab HE GloveBox Systems and I-Lab GloveBox Systems are developed and manufactured for industries who need air-free (O2) and water-free (H2O) processing capabilities in a humidity-controlled glove box, and facilities that require a premium, inert laboratory glove box.
INERT
We design and deliver the most dependable standardized and custom-built inert atmosphere Glove Boxes, Gas Management Systems and Solvent Purification Systems at the most competitive prices.
- We are here to ensure your working environment is free of oxygen and moisture; and full safety, cost savings, and customized solutions to unique workflow requirements.
- Since 1981, we’ve been the glove box and solvent system design/manufacturer who puts quality, flexibility, and customer service first. As a result, our solutions and after-sales support are unmatched.
Solvent Purification Systems
- Solvent Purification Systems for Research Teams, Institutions, and Industry. Inert Solvent Purification System is capable of integration with any of our Glovebox Systems. They are also available in a variety of configurations and sizes.
- PowderShield™: Advanced Depowdering Station for Safe Additive Manufacturing Post processing.
- Powderstorage: Secure and Efficient Metallic Powder Storage for Additive Manufacturing Professionals
